2006 – 400K Watson Hopper Carrier Self Propelled Drilling Rig Package – Used
Self Propelled Carrier Watson Hopper Five (5) Axle Carrier, Four (4) Hydraulic Jacks P/B Detroit Model S-60 with Allison 6061 Transmission Air, Hydraulic Systems, Utility Winch
Axle Weights 1st-22,000#, 2nd-22,000#, 3rd 22,500#, 4th 26,000#, 5th 26,000# Gross Vehicle Weight 118,500 lbs
Manufactured Year 2006
Video Link of
DRAWWORKS
Water Cooled Brake
Clutch Control
Gear Selector
Parmac Hydro Brake
MUD PUMPS
Two (2) 500 HP packages each with master skid, Each with One (1) Detroit S-60 600HP engine with a radiator, muffler, drive sheaves, belts, belt guards and charge pump
RIG POWER
Two (2) Caterpillar diesel engines each with generator and radiator. (3306/210kw & 3406/230kw)
One (1) 150 KVA transformer and MCC to operate the rig.
One (1) Sullivan Palatek compressor in Generator/MCC house set packaged on a 10’ x 50′ House long master skid with roof, muffler, etc.
One (1) Detroit driven Hydraulic Power Unit Skid
MAST

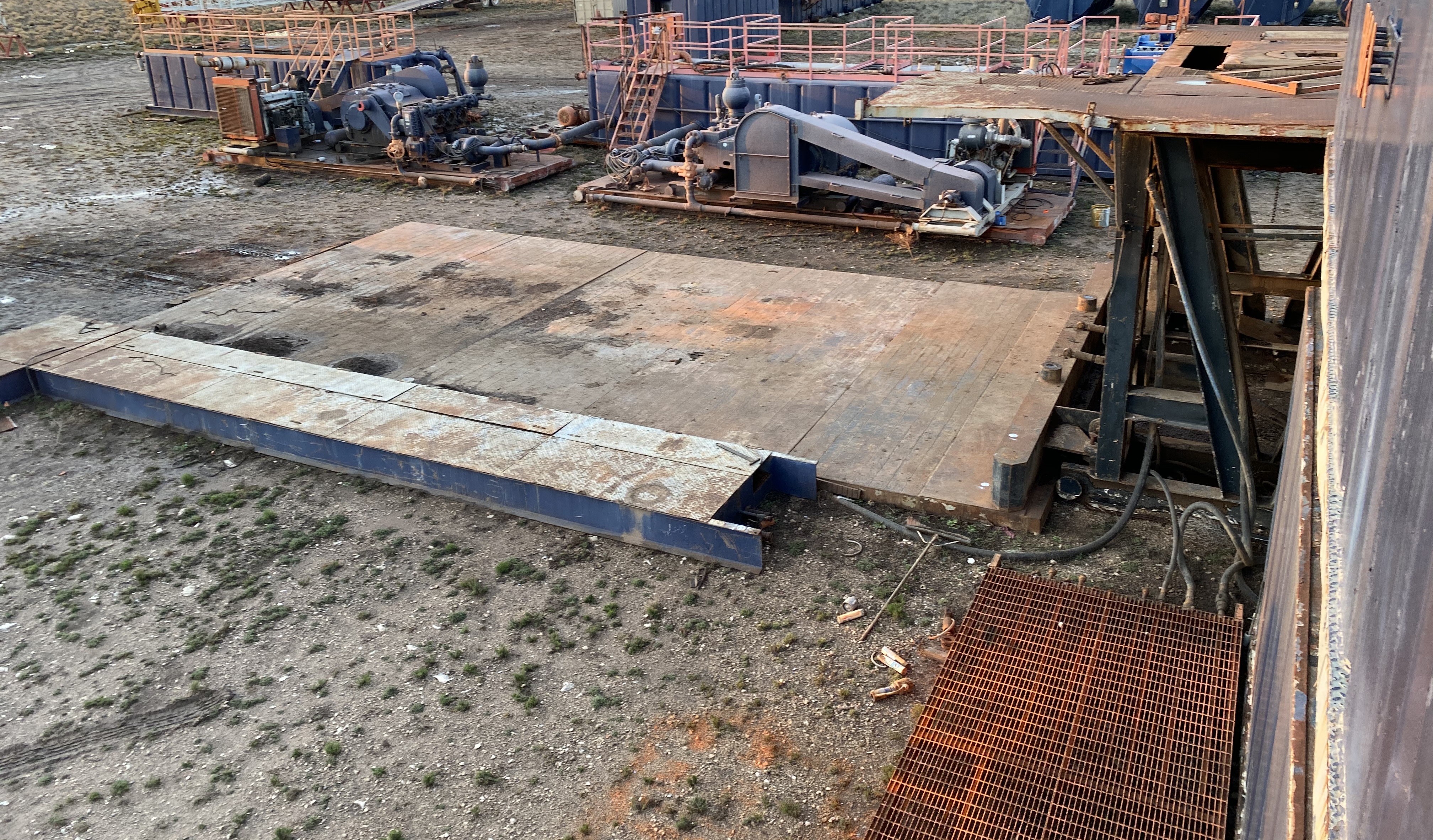

Three (3) Section Mast with 112′ Height, Design capacity 400,000 Lbs, Number Of Lines To Block 8, Racking Board, One (1) Fastline, One (1) Deadline, Three (3) 30” Crown Sheaves, Mast Raising Cylinder One (1) Mast Tie Down Base Beam and Mud Boat Steel Mats
SUBSTRUCTURE
Capacity: 400,000 lbs. working height: 12ft floor. Working space under rotary table beam: 9ft.
Setback & 20.5″ Hydraulic Rotary & Handrails
MUD SYSTEM
2-tank mud system complete with centrifugal pumps, shale shaker, mud guns and stairs/Handrails 10’x47′ Shaker Tank 10’x30′ Mud Mix/Suction Tank
TANKS & HOUSES
Top Doghouse (10’x30′)
Bottom Doghouse with lockers/part shelves (10’x30′)
One (1) Fuel Tank with pumps
Two (2) Water Tanks with pumps
MISC
200 Ton McKissick Block/Hook Combo
200 Ton Swivel
20.5” Rotary Table
5-Station Closing Unit with remote
Lubster Skid Wireline unit
Suitcases
Hydraulic Suitcase
Junk Box Skid
V-Door
Catwalk
