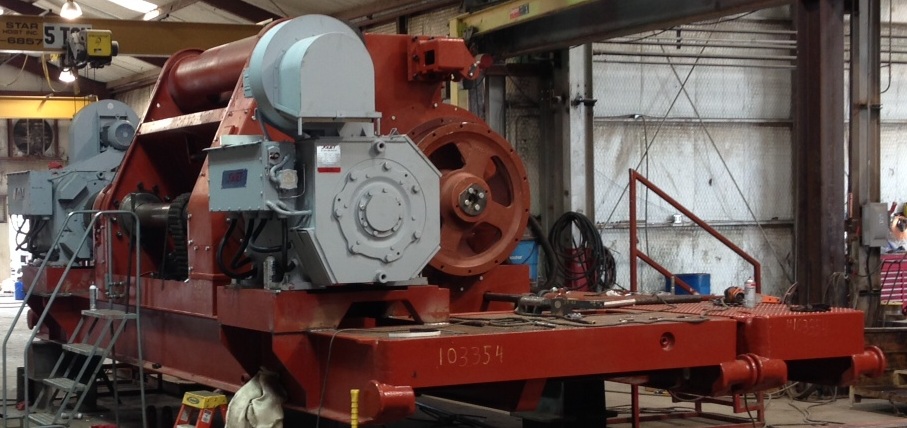

New 110-UE National Style 1500HP Drawworks – US Made – New

Welded structural steel frame and housing

Drum with grooving for 1-3/8” drill line

50 x 10 brake rims
27 x 49 drum core

Make-up and break-out hydraulic catheads with gauges and controls at drillers console. Includes hydraulic power.

40 x 10 high drum clutch
46 x 10 low drum clutch
28 x 5-1/4” rotary clutch

Motor drive chain
Drum drive chains

Induction hardened cut tooth sprockets

Pressure spray oil lubrication to all chains
Lubrication pump

Self-aligning main shaft roller bearings

Air controlled transmission clutches

Console control panel for drawworks

Two (2) remanufactured GE style 752 series wound traction motors.

New Eaton water cooled auxiliary brake 336 WCBD
New Eaton brake has stand along trip and drilling system
